Chapter 18: Texture Sampling and Tiling Backgrounds

Learn how to use texture sampling states and add a scrolling background effect to the game.

In previous chapters, we've drawn individual sprites and textures with the sprite batch, but for creating repeating background patterns, we need a more efficient approach than manually drawing the same texture multiple times. We could reuse the tilemap system that was created to make repeated background patterns, but this has a limitation in that the tiles are stationary and would require constantly updating the tiles and positions if we wanted to animate it. Instead, this chapter introduces texture sampling states, specifically focusing on how to create and animate tiled backgrounds using SamplerState.PointWrap.

In this chapter, you will:

• Learn about texture sampling and sampler states in MonoGame.
• Understand how wrap mode allows efficient texture tiling.
• Implement a scrolling tiled background for the title screen.

Understanding Texture Sampling

When a texture is drawn to the screen, MonoGame uses a process called "sampling" to determine which pixels from the texture should be displayed, especially when the texture is scaled, rotated, or only partially visible. The rules governing this process are defined by sampler states.

Texture Coordinates

In graphics programming, textures are addressed using a normalized coordinate system ranging from 0.0 to 1.0, regardless of the texture's actual pixel dimensions:

• The top-left corner of a texture is (0.0, 0.0)
• The bottom-right corner is (1.0, 1.0)
• The center is (0.5, 0.5)

This normalized system means that regardless of whether your texture is 32×32 pixels or 2048×2048 pixels, the coordinates to access the entire texture always range from 0.0 to 1.0. The graphics hardware automatically converts these normalized coordinates to the actual pixel locations within the texture.

When you use SpriteBatch to draw a texture with a source rectangle specified in pixels, MonoGame internally converts those pixel coordinates to normalized texture coordinates before sending them to the GPU. Similarly, when you specify a destination rectangle, MonoGame determines how the normalized texture coordinates should map to screen coordinates.

What is a SampleState

A SamplerState controls how textures are sampled during rendering. It determines several aspects of texture rendering:

• How textures are filtered when scaled (point/linear/anisotropic filtering).
• How texture coordinates outside the 0.0 to 1.0 range are handled (wrap/clamp/mirror).
• How mipmap levels are selected and blended.

In MonoGame, these sampler states are represented by the SamplerState class, which provides several predefined states for common scenarios.

Filtering Modes

One aspect of sampler states if the filtering mode. The filter mode used determines how pixels are interpolated when a texture is scaled. There are three filtering modes available; Point, Linear, and Anisotropic.

Point Filtering Mode

Point mode uses what is called nearest neighbor sampling. This means that when a texture is scaled, the closest pixel is selected resulting in a pixelated appearance when scaled up. This is typically the ideal mode to use for pixel-art games when you want to preserve the exact pixel appearance of a scaled texture.

Figure 18-1: Illustration of using Point filtering mode. Left: MonoGame logo at 32x32 pixels. Right: MonoGame logo at 128x128 pixels

Linear Filtering Mode

Linear filtering mode blends neighboring pixels when the texture is scaled. This creates a smoother, but potentially blurrier appearance. This is better for realistic or high-resolution textures.

Figure 18-2: Illustration of using Linear filtering mode. Left: MonoGame logo at 32x32 pixels. Right: MonoGame logo at 128x128 pixels

Anisotropic Filtering Mode

Anisotropic filtering mode provides higher-quality filter for textures viewed from oblique angles. This is primarily used in 3D rendering. It helps textures look more detailed by reducing blur and aliasing that occurs when a surface is angled away from the viewer.

Figure 18-3: Illustration of the MonoGame Fuel cell demo using Linear filtering	Figure 18-4: Illustration of the MonoGame Fuel cell demo using Anisotropic filtering

Addressing Modes

The other aspect is the addressing mode, which determines what happens when texture coordinates fall outside the normal 0.0 to 1.0 range. There are four addressing modes available; Wrap, Mirror, Clamp, and Border Color:

Wrap Mode

When using Wrap mode, at every whole integer of the texture coordinates (0.0 and 1.0), the texture coordinate is wrapped to stay within the 0.0 to 1.0 range (i.e. if the texture coordinate is 1.2, then that wraps to become 0.2). This creates a tiled pattern.

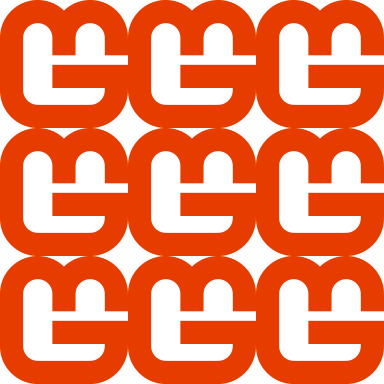

For example, if we were to take the MonoGame logo at 128x128 pixels and draw it to a destination rectangle that was three times the size at 384x384 pixels, then the texture coordinates of the destination rectangle become (0.0, 0.0) (top-left), (3.0, 0.0) (top-right), (0.0) (bottom-left), and (3.0, 3.0) bottom-right. The MonoGame logo texture would repeat three times horizontally and vertically within the destination.

Figure 18-5: Illustration of the MonoGame logo drawn using wrapped addressing mode

Mirror Mode

Mirror mode is similar to Wrap mode. However instead of repeating the texture at every whole integer of the texture coordinates (0.0 and 1.0), the texture is flipped, creating a mirror effect.

Using the same example as above, taking the MonoGame logo at 128x128 pixels and drawing it to a destination rectangle three times the size with Mirror mode would produce the following:

Figure 18-6: Illustration of the MonoGame logo drawn using mirror addressing mode

Clamp Mode

When using Clamp mode, the texture coordinates are clamped to the 0.0 and 1.0 range. Texture coordinates that would go beyond this (edge pixels) are smeared.

The simplest demonstration of this is to use a checkerboard pattern. If we were to take a texture that was a checkerboard pattern at 128x128 pixels and draw it to a destination rectangle three times the size with Clamped mode, then any pixels that extend outside the clamped range would smeared, producing the following:

Figure 18-7: Illustration of a checkerboard pattern drawn using clamped addressing mode

Border Color

When using Border Color mode, similar to Clamped mode, the texture coordinates are clamped to the 0.0 and 1.0f range. However, in Border Color mode, texture coordinates that would go beyond this (edge pixels) are instead drawn using the color set as the border color for the sampler state.

For example, if we use the checkerboard pattern again, using Border Color mode with a border color of green, then it would produce the following:

Figure 18-8: Illustration of a checkerboard pattern drawn using border addressing mode with the border color set to green

Using SamplerStates

MonoGame offers several predefined sampler states as part of the SamplerState class that cover common scenarios:

SamplerState	Description	Common Use Case
AnisotropicClamp	Combines Anisotropic filter mode with the Clamp addressing mode.	3D textures viewed at oblique angles, like ground textures in a 3D world where you want high-quality filtering but no repeating patterns.
AnisotropicWrap	Combines Anisotropic filter mode with the Wrap addressing mode.	Terrain textures in 3D games where you need high-quality filtering and repeating patterns over large surfaces.
LinearClamp	Combines Linear filter mode with the Clamp addressing mode.	UI elements and single sprites where you want smooth scaling but no repeating patterns. Good for realistic graphics that need to scale.
LinearWrap	Combines Linear filter mode with the Wrap addressing mode.	Scrolling backgrounds with smooth transitions, like water or cloud textures that need to tile seamlessly with blended edges.
PointClamp	Combines Point filter mode with the Clamp addressing mode.	Pixel art sprites and UI elements where you want to preserve crisp pixel edges without any blurring when scaled. Default for most 2D games.
PointWrap	Combines Point filter mode with the Wrap addressing mode.	Tiled pixel art backgrounds and patterns where you want crisp pixels and repeating patterns

When using the SpriteBatch, you specify which sampler state you want to use as the samplerState parameter for the SpriteBatch.Begin method

// Example of using the Point Clamp sampler state
spriteBatch.Begin(samplerState: SamplerState.PointClamp);

Note

The default sampler state for SpriteBatch is SamplerState.LinearClamp in MonoGame, though SamplerState.PointClamp is often preferred for pixel art games to prevent blurring.

Adding a Scrolling Background to the Title Scene

Let's update title scene of our game by adding a scrolling background pattern using SamplerState.PointWrap. By using the Wrap addressing mode, we can create a large scrolling background using only a small texture. When the texture is drawn with a destination rectangle larger than the texture itself, the Wrap mode will automatically tile the texture to fill the space. Then, by adjusting the source rectangle over time, we can create a scrolling effect with minimal effort.

First, download the following image of a repeatable background pattern by right-clicking it and saving it as background-pattern.png in the Content/images directory of the game project:

Figure 18-9: The repeatable background pattern we'll use for the title screen

Next, add this texture to your content project using the MGCB Editor:

1. Open the Content.mgcb content project file in the MGCB Editor.
2. Right-click the images folder and choose Add > Existing item....
3. Navigate to and select the background-pattern.png file.
4. Save the changes and close the MGCB Editor.

Figure 18-9: The MGCB Editor with the background-pattern image added

Updating the Title Scene

Now that we have the background pattern texture added, let's update the TitleScene class to implement the scrolling background. Open the TitleScene.cs file in the game project and update it to the following

using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Graphics;
using Microsoft.Xna.Framework.Input;
using MonoGameLibrary;
using MonoGameLibrary.Graphics;
using MonoGameLibrary.Scenes;

namespace DungeonSlime.Scenes;

public class TitleScene : Scene
{
    private const string PRESS_ENTER = "Press Enter To Start";

    // The font to use to render normal text.
    private SpriteFont _font;

    // The sprite to draw for the stylized title
    private Sprite _titleSprite;

    // The position to draw the title sprite at.
    private Vector2 _titlePos;

    // The position to draw the press enter text at.
    private Vector2 _pressEnterPos;

    // The origin to set for the press enter text when drawing it.
    private Vector2 _pressEnterOrigin;

    // The texture used for the background pattern.
    private Texture2D _backgroundPattern;

    // The destination rectangle for the background pattern to fill.
    private Rectangle _backgroundDestination;

    // The offset to apply when drawing the background pattern so it appears to
    // be scrolling.
    private Vector2 _backgroundOffset;

    // The speed that the background pattern scrolls.
    private float _scrollSpeed = 50.0f;

    public override void Initialize()
    {
        // LoadContent is called during base.Initialize().
        base.Initialize();

        // While on the title screen, we can enable exit on escape so the player
        // can close the game by pressing the escape key.
        Core.ExitOnEscape = true;

        // Get the bounds of the screen for position calculations
        Rectangle screenBounds = Core.GraphicsDevice.PresentationParameters.Bounds;

        // Precalculate the positions and origins for texts and the slime sprite
        // so we're not calculating it every draw frame.
        _titlePos = new Vector2(
            screenBounds.Width * 0.5f,
            80 + _titleSprite.Height * 0.5f);

        // Center the origin of the title sprite.
        _titleSprite.CenterOrigin();

        // Precalculate the position of for the press enter text so that it is
        // centered horizontally and place 100 pixels above the bottom of the
        // screen.
        _pressEnterPos = new Vector2(
            screenBounds.Width * 0.5f,
            screenBounds.Height - 100
        );

        // Precalculate the center origin of the press enter text.
        Vector2 pressEnterSize = _font.MeasureString(PRESS_ENTER);
        _pressEnterOrigin = pressEnterSize * 0.5f;

        // Initialize the offset of the background pattern at zero
        _backgroundOffset = Vector2.Zero;

        // Set the background pattern destination rectangle to fill the entire
        // screen background
        _backgroundDestination = Core.GraphicsDevice.PresentationParameters.Bounds;
    }

    public override void LoadContent()
    {
        // Load the font for the standard txt.
        _font = Core.Content.Load<SpriteFont>("fonts/gameFont");

        // Create a texture atlas from the XML configuration file.
        TextureAtlas atlas = TextureAtlas.FromFile(Core.Content, "images/atlas-definition.xml");

        _titleSprite = atlas.CreateSprite("title-card");

        // Load the background pattern texture.
        _backgroundPattern = Content.Load<Texture2D>("images/background-pattern");
    }

    public override void Update(GameTime gameTime)
    {
        // If the user presses enter, switch to the game scene.
        if (Core.Input.Keyboard.WasKeyJustPressed(Keys.Enter))
        {
            Core.ChangeScene(new GameScene());
        }

        // Update the offsets for the background pattern wrapping so that it
        // scrolls down and to the right.
        float offset = _scrollSpeed * (float)gameTime.ElapsedGameTime.TotalSeconds;
        _backgroundOffset.X -= offset;
        _backgroundOffset.Y -= offset;

        // Ensure that the offsets do not go beyond the texture bounds so it is
        // a seamless wrap
        _backgroundOffset.X %= _backgroundPattern.Width;
        _backgroundOffset.Y %= _backgroundPattern.Height;
    }

    public override void Draw(GameTime gameTime)
    {
        Core.GraphicsDevice.Clear(new Color(32, 40, 78, 255));

        // Draw the background pattern first using the PointWrap sampler state.
        Core.SpriteBatch.Begin(samplerState: SamplerState.PointWrap);
        Core.SpriteBatch.Draw(_backgroundPattern, _backgroundDestination, new Rectangle(_backgroundOffset.ToPoint(), _backgroundDestination.Size), Color.White * 0.5f);
        Core.SpriteBatch.End();

        // Begin the sprite batch to prepare for rendering.
        Core.SpriteBatch.Begin(samplerState: SamplerState.PointClamp);

        _titleSprite.Draw(Core.SpriteBatch, _titlePos);

        // Draw the press enter text
        Core.SpriteBatch.DrawString(_font, PRESS_ENTER, _pressEnterPos, Color.White, 0.0f, _pressEnterOrigin, 1.0f, SpriteEffects.None, 0.0f);

        // Always end the sprite batch when finished.
        Core.SpriteBatch.End();
    }
}

The key changes here are

• The _backgroundPattern field was added to store a reference to the texture of the background pattern once its loaded.
• The _backgroundDestination field was added to define the destination rectangle to draw the background pattern to.
• The _backgroundOffset field was added to apply an offset to the source rectangle when rendering the background pattern to give it the appearance that it is scrolling.
• The _scrollSpeed field was dded to set the speed at which the background pattern scrolls.
• In Initialize, the initial offset of the background is set to Vector2.Zero and the background destination rectangle is set to the bounds of the screen.
• In LoadContent, the background-pattern texture is loaded and stored in _backgroundPattern.
• In Update, the X and Y offset for the background source rectangle is calculated by adjusting the based on the scroll speed multiplied by the delta time. Modulo division is then used to ensure that the new offset calculations remain within the width and height bounds of the background texture so that the wrap is seamless.
• In Draw, a new sprite batch begin/end block is added that uses SamplerState.PointWrap and draws the background pattern to the destination rectangle using a source rectangle with the offset calculations.

Note

We use two separate sprite batch begin/end blocks for this. The first SamplerState.PointWrap to draw the background and the second uses SamplerState.PointClamp to draw the rest of the scene.

This separation is necessary because changing the sampler state requires ending the current sprite batch and beginning a new one.

Running the game now with these changes, the title screen now has a scroll background that adds more visual depth and interest to it than just the plain colored background we had before.

Figure 18-10: The title screen now with the repeating background texture of the slime and bat scrolling diagonally down and to the right

Conclusion

In this chapter, you accomplished the following:

• Learned about texture coordinates and how they map from normalized 0.0 to 1.0 space to actual pixel locations.
• Understood the difference between various filtering modes (Point, Linear, Anisotropic) and their visual impact.
• Explored different addressing modes (Wrap, Mirror, Clamp, Border) and when to use each.
• Discovered how to use predefined sampler states to simplify common rendering tasks.
• Implemented a scrolling background pattern using SamplerState.PointWrap.

Test Your Knowledge

1. What is the difference between normalized texture coordinates and pixel coordinates?

   Normalized texture coordinates always range from 0.0 to 1.0 regardless of the texture's actual pixel dimensions. The top-left corner is (0.0, 0.0) and the bottom-right is (1.0, 1.0). Pixel coordinates, on the other hand, directly reference specific pixel locations within the texture using integer values based on the actual texture dimensions. MonoGame automatically converts between these coordinate systems when drawing textures.

2. Which filtering mode would be most appropriate for a pixel art game, and why?

   Point filtering (also called nearest neighbor) is most appropriate for pixel art games. It selects the closest pixel when scaling rather than blending neighboring pixels, which preserves the crisp, pixelated aesthetic that defines pixel art. Linear or Anisotropic filtering would blur the intentionally sharp edges of pixel art graphics.

3. Why do we use modulo (%) operation on the background offset values when implementing the scrolling background?

   The modulo operation ensures that the offset values always remain within the bounds of the original texture dimensions. This prevents potential graphical artifacts that could appear when the offset exceeds the texture size, and it guarantees seamless wrapping as the background continuously scrolls. Without this, the background pattern might show visible seams or discontinuities when it repeats.

4. Why do we need to use two separate sprite batch begin/end blocks when drawing the background and the other elements in the title scene?

   We need separate blocks because changing the sampler state requires ending the current batch and beginning a new one. Since we want to use SamplerState.PointWrap for the tiling background but SamplerState.PointClamp for the UI elements, we must use two distinct sprite batch blocks with different sampler state settings. Using a single batch would apply the same sampler state to all drawn elements.

5. How does using a tiled background with SamplerState.PointWrap compare to manually drawing multiple copies of a texture to create a background?

   Using SamplerState.PointWrap offers several advantages:

   • It requires only a single draw call instead of multiple calls for each tile.
   • No need to calculate positions for each individual tile
   • Manually drawing multiple copies would be more code-intensive, less performant, and harder to maintain, especially for animations.
